规格：
Available with or without LEDs
Meets IEEE 802.3 specification
Comply with RoHS requirements.
规格：
Available with or without LEDs
Meets IEEE 802.3 specification
Comply with RoHS requirements.

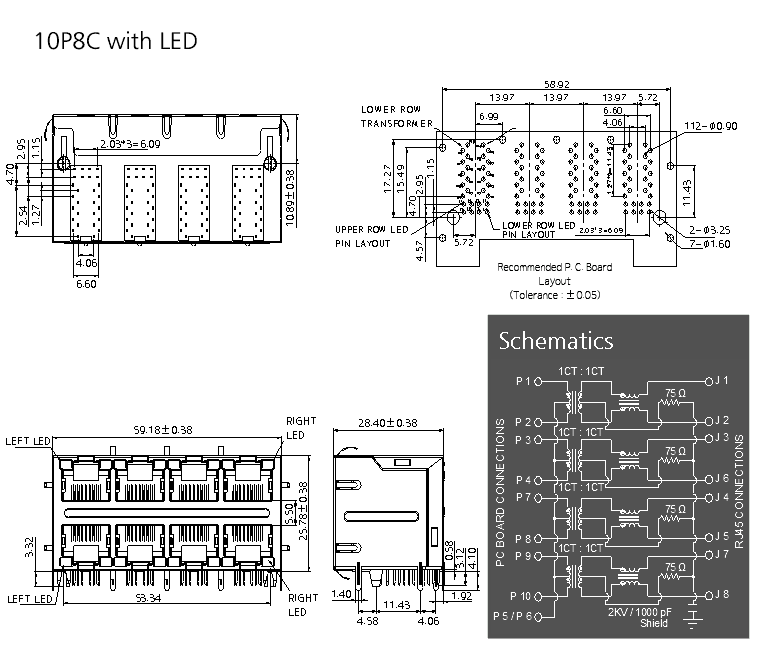

2D drawing：
Electrical Specifications @25℃ Operating Temperature 0 to 70℃ or Customize：
| Turns Ratio ±5% | Insertion Loss (dB max) | Return Loss (dB min) | Cross Talk (dB min) | Hipot (Vrms) | |||
| 0.1 - 100 MHz | 1 - 30 MHz | 30 - 60 MHz | 60 - 80 MHz | 100 MHz | 1-100MHz | 1500 | |
| 1CT : 1CT | - 1 | - 18 | - 16 | - 12 | - 10 | - 30 | |
