规格：

Current Rating: 2.0 Ampere

Insulation Resistance: 1000 MΩ Min

Dielectric Withstanding: 500V AC

Contact Resistance: 20 mΩ Max

Operating Temperature: -40ºC to +105ºC

材料：

Contact Material: Brass

Insulation Material: High Temperature Thermoplastic, 94V-0 Nylon

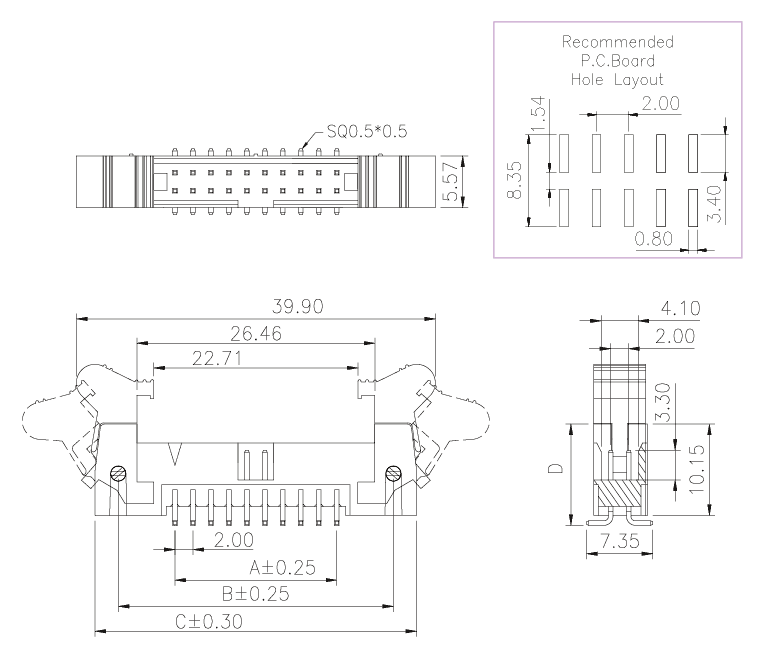

2D drawing：

Ordering information：

Standard Plating

02 : Gold Flash

Selective Plating

01 : Tin

05 : Gold Flash/Tin

Standard Packaging : Box
