规格：
Current Rating: 1.0 Ampere
Insulation Resistance: 1000 MΩ Min
Dielectric Withstanding: 300V AC
Contact Resistance: 20 mΩ Max
Operating Temperature: -40ºC to +105ºC
材料：
Contact Material: Phosphor Bronze
Insulation Material: High Temperature Thermoplastic, 94V-0 LCP

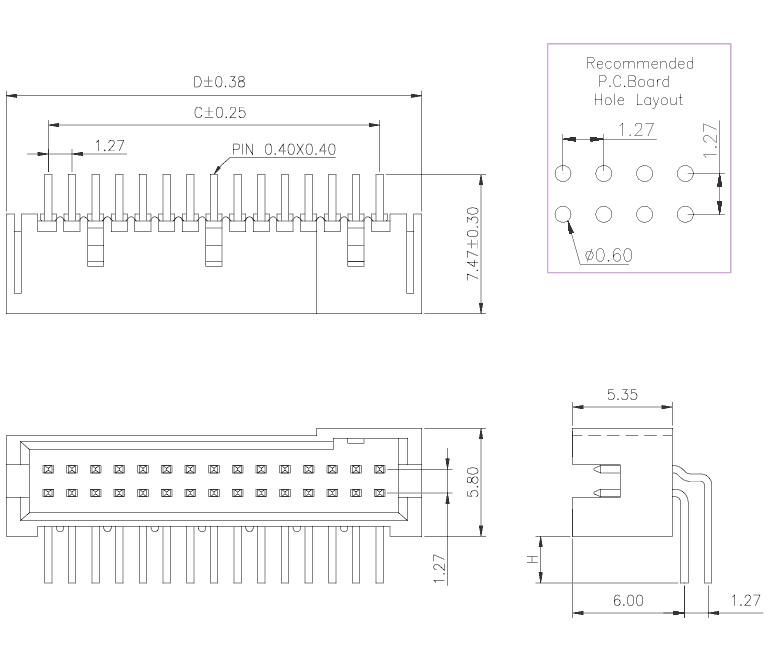

2D drawing：
No. of Pins per Row：
| No. of Pins/Row | Dimension Information | |
| C | D | |
| 05 | 5.08 | 9.60 |
| 06 | 6.35 | 10.87 |
| 08 | 8.89 | 13.41 |
| 10 | 11.43 | 15.95 |
| 15 | 17.78 | 22.30 |
| 20 | 24.13 | 28.65 |
| 22 | 26.67 | 31.19 |
| 25 | 30.48 | 35.00 |
| 30 | 36.83 | 41.35 |
Ordering information：
Standard Plating
01 : Tin
02 : Gold Flash
Selective Plating
05 : Gold Flash/Tin
Standard Packaging : Tube
