规格：
Current Rating: 7.9 Ampere
Insulation Resistance: 1000 MΩ Min
Dielectric Withstanding: 1500V AC
Contact Resistance: 20 mΩ Max
Operating Temperature: -40ºC to +105ºC
材料：
Contact Material: Brass
Insulation Material: High Temperature Thermoplastic, 94V-0 LCP

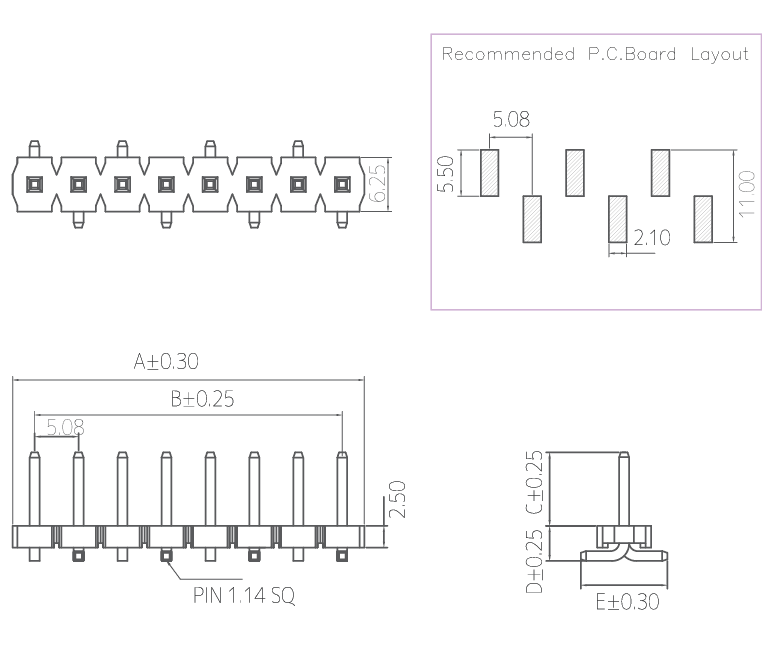

2D drawing：
No. of Pins per Row：
| No. of Pins/Row | Dimension Information | |
| D | E | |
| 02 | 10.16 | 5.08 |
| 03 | 15.24 | 10.16 |
| 04 | 20.32 | 15.24 |
| 05 | 25.40 | 20.32 |
| 06 | 30.48 | 25.40 |
| 07 | 35.56 | 30.48 |
| 08 | 40.64 | 35.56 |
| 09 | 45.72 | 40.64 |
| 10 | 50.80 | 45.72 |
| 11 | 55.88 | 50.80 |
| 12 | 60.96 | 55.88 |
| 13 | 66.04 | 60.96 |
| 14 | 71.12 | 66.04 |
| 15 | 76.20 | 71.12 |
| 16 | 81.28 | 76.20 |
| 17 | 86.36 | 81.28 |
| 18 | 91.44 | 86.36 |
| 19 | 96.52 | 91.44 |
| 20 | 101.60 | 96.52 |
Ordering information：
Standard Plating
02 : Gold Flash
Selective Plating
01 : Tin
05 : Gold Flash/Tin
Standard Packaging : Tube
