规格：
Current Rating: 7.9 Ampere
Insulation Resistance: 1000 MΩ Min
Dielectric Withstanding: 1500V AC
Contact Resistance: 20 mΩ Max
Operating Temperature: -40ºC to +105ºC
材料：
Contact Material: Brass
Insulation Material: High Temperature Thermoplastic, 94V-0 LCP

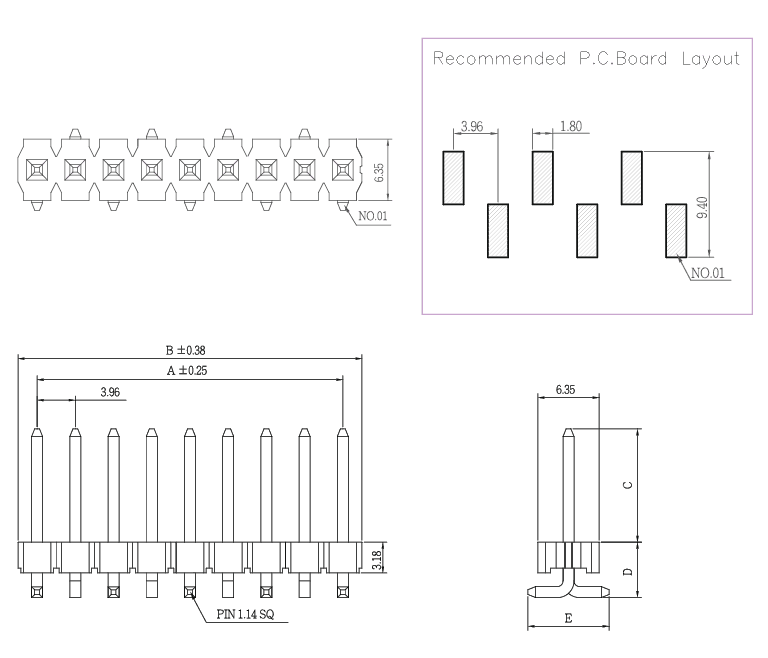

2D drawing：
No. of Pins per Row：
| No. of Pins/Row | Dimension Information | |
| A | B | |
| 02 | 7.92 | 3.96 |
| 03 | 11.88 | 7.92 |
| 04 | 15.84 | 11.88 |
| 05 | 19.80 | 15.84 |
| 06 | 23.76 | 19.80 |
| 07 | 27.72 | 23.76 |
| 08 | 31.68 | 27.72 |
| 09 | 35.64 | 31.68 |
| 10 | 39.60 | 35.64 |
| 11 | 43.56 | 39.60 |
| 12 | 47.52 | 43.56 |
| 13 | 51.48 | 47.52 |
| 14 | 55.44 | 51.48 |
| 15 | 59.40 | 55.44 |
| 16 | 63.36 | 59.40 |
| 17 | 67.32 | 63.36 |
| 18 | 71.28 | 67.32 |
| 19 | 75.24 | 71.28 |
| 20 | 79.20 | 75.24 |
| 21 | 83.16 | 79.20 |
| 22 | 87.12 | 83.16 |
| 23 | 91.08 | 87.12 |
| 24 | 95.04 | 91.08 |
Ordering information：
Standard Plating
02 : Gold Flash
Selective Plating
01 : Tin
05 : Gold Flash/Tin
Standard Packaging : Tube
