Pitch ：2.54 mm / 0.10" | Number of row ：Dual rows | Mount type ：S.M.T. | Locating peg ：With
规格：
Current Rating: 3.0 Ampere
Insulation Resistance: 1000 MΩ Min
Dielectric Withstanding: 600V AC
Contact Resistance: 20 mΩ Max
Operating Temperature: -40ºC to +105ºC
材料：
Contact Material: Brass
Insulation Material: High Temperature Thermoplastic, 94V-0 Nylon

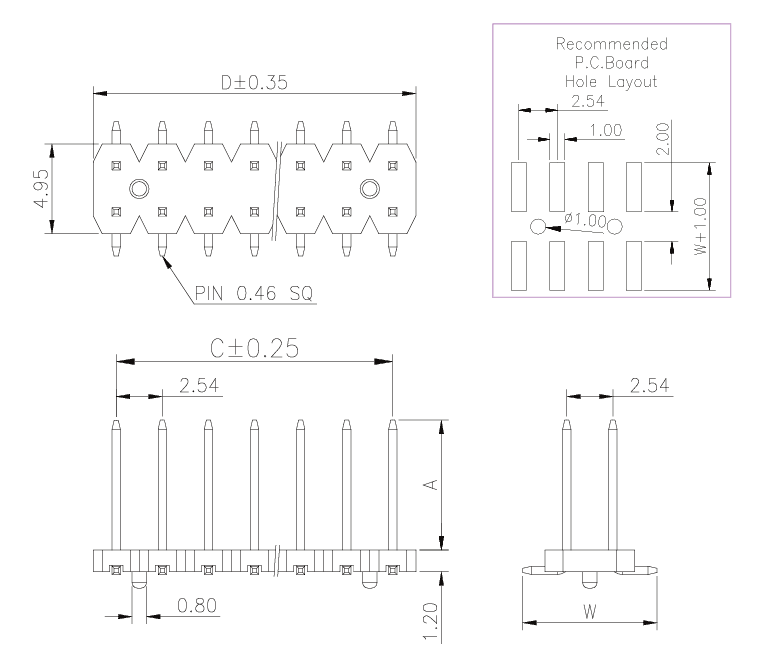

2D drawing：
No. of Pins per Row：
| No. of Pins/Row | Dimension Information | |
| C | D | |
| 02 | 2.54 | 5.08 |
| 03 | 5.08 | 7.62 |
| 04 | 7.62 | 10.16 |
| 05 | 10.16 | 12.70 |
| 06 | 12.70 | 15.24 |
| 07 | 15.24 | 17.78 |
| 08 | 17.78 | 20.32 |
| 09 | 20.32 | 22.86 |
Ordering information：
Standard Plating
01 : Tin
02 : Gold Flash
Selective Plating
05 : Gold Flash/Tin
Standard Packaging : Tube
