Pitch ：1.27 mm / 0.05" | Gender ：Male | Mount type ：S.M.T. R/A | Locating peg ：With | Up to 8 Gbps
规格：
Current Rating: 0.8 Ampere
Insulation Resistance: 1000 MΩ Min
Dielectric Withstanding: 500V AC
Contact Resistance: 25 mΩ Max
Operating Temperature: -55ºC to +125ºC
Data rate: Up to 8 Gbps / High speed
材料：
Contact Material: Phosphor Bronze
Insulation Material: High Temperature Thermoplastic, 94V-0 LCP

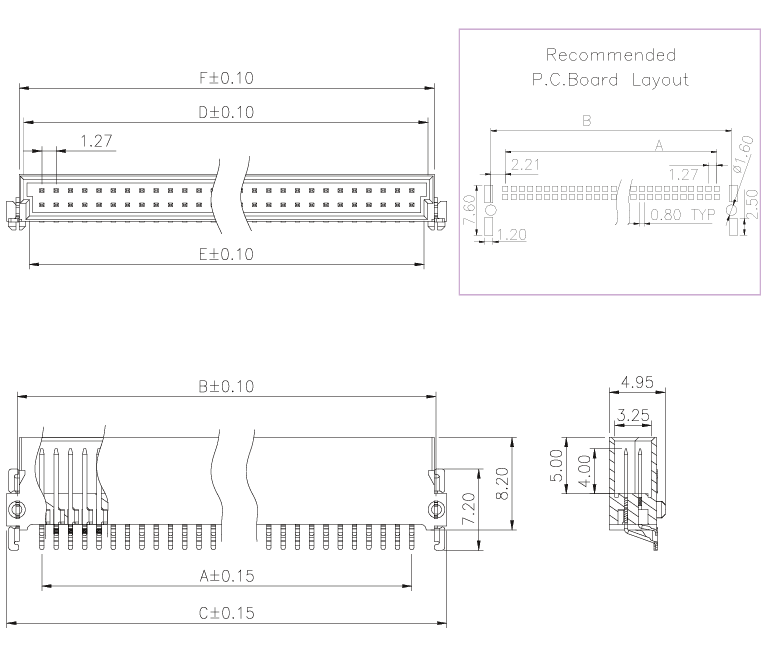

2D drawing：
No. of Pins per Row：
| No. of Pins/Row | Dimension Information | |||||
| A | B | C | D | E | F | |
| 06 | 6.35 | 10.77 | 12.70 | 9.57 | 8.57 | 10.35 |
| 13 | 15.24 | 19.66 | 21.60 | 18.46 | 17.46 | 19.24 |
| 25 | 30.48 | 34.90 | 36.80 | 33.70 | 32.70 | 34.48 |
| 34 | 41.91 | 46.33 | 48.20 | 45.13 | 44.13 | 45.91 |
| 40 | 49.53 | 53.95 | 55.80 | 52.75 | 51.75 | 53.53 |
Ordering information：
Standard Plating
79 : Gold 5u" / Matte Tin 80~160u"
Selective Plating
05 : Gold Flash/Tin
Standard Packaging : Tape Reel
