Pitch ：0.80 mm / 0.03" | Gender ：Female | Mount type ：S.M.T. R/A | Locating peg ：With
规格：
Current Rating: 0.5 Ampere
Insulation Resistance: 500 MΩ Min
Dielectric Withstanding: 200V AC
Contact Resistance: 20 mΩ Max
Operating Temperature: -40ºC to +105ºC
材料：
Contact Material: Brass
Insulation Material: High Temperature Thermoplastic, 94V-0 Nylon

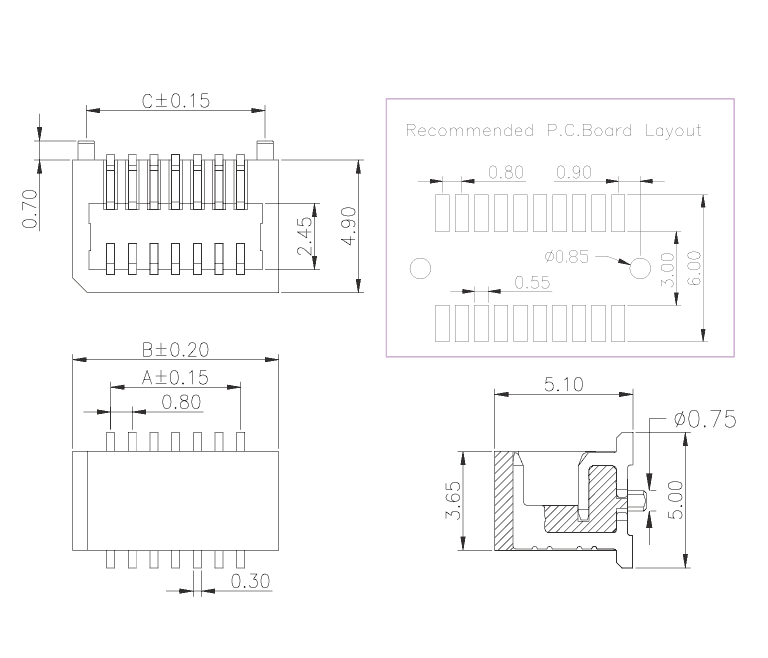

2D drawing：
No. of Pins per Row：
| No. of Pins/Row | Dimension Information | ||
| A | B | C | |
| 05 | 3.20 | 6.00 | 5.00 |
| 06 | 4.00 | 6.80 | 5.80 |
| 07 | 4.80 | 7.60 | 6.60 |
| 08 | 5.60 | 8.40 | 7.40 |
| 09 | 6.40 | 9.20 | 8.20 |
| 10 | 7.20 | 10.00 | 9.00 |
| 11 | 8.00 | 10.80 | 9.80 |
| 12 | 8.80 | 11.60 | 10.60 |
| 13 | 9.60 | 12.40 | 11.40 |
| 14 | 10.40 | 13.20 | 12.20 |
| 15 | 11.20 | 14.00 | 13.00 |
| 16 | 12.00 | 14.80 | 13.80 |
| 17 | 12.80 | 15.60 | 14.60 |
| 18 | 13.60 | 16.40 | 15.40 |
| 19 | 14.40 | 17.20 | 16.20 |
| 20 | 15.20 | 18.00 | 17.00 |
| 21 | 16.00 | 18.80 | 17.80 |
| 22 | 16.80 | 19.60 | 18.60 |
| 23 | 17.60 | 20.40 | 19.40 |
| 24 | 18.40 | 21.20 | 20.20 |
| 25 | 19.20 | 22.00 | 21.00 |
| 26 | 20.00 | 22.80 | 21.80 |
| 27 | 20.80 | 23.60 | 22.60 |
| 28 | 21.60 | 24.40 | 23.40 |
| 29 | 22.40 | 25.20 | 24.20 |
| 30 | 23.20 | 26.00 | 25.00 |
Ordering information：
Standard Plating
02 : Gold Flash
Standard Packaging : Tube
