规格：
Current Rating: 3.0 Ampere
Insulation Resistance: 1000 MΩ Min
Dielectric Withstanding: 600V AC
Contact Resistance: 20 mΩ Max
Operating Temperature: -40ºC to +105ºC
材料：
Contact Material: Phosphor Bronze
Insulation Material: High Temperature Thermoplastic, 94V-0 PBT

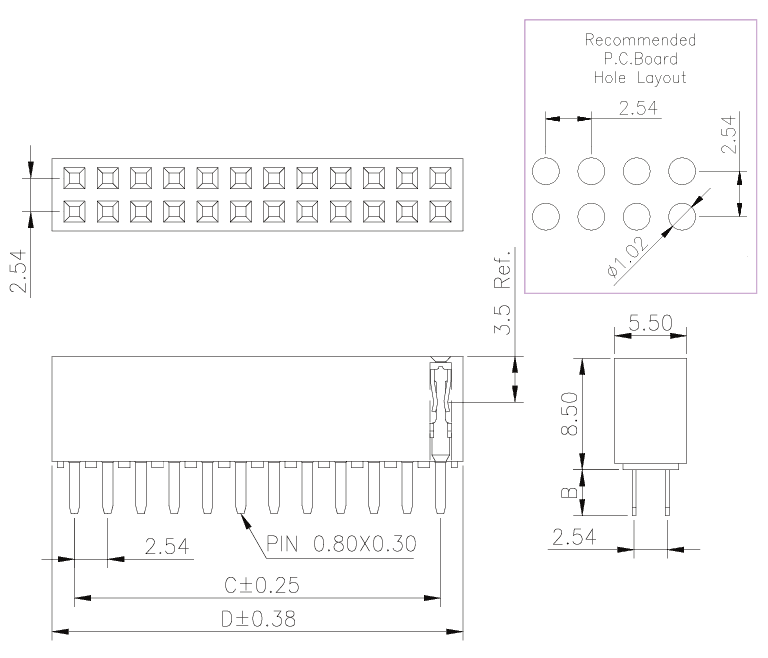

2D drawing：
No. of Pins per Row：
| No. of Pins/Row | Dimension Information | |
| C | D | |
| 02 | 2.54 | 5.88 |
| 03 | 5.08 | 8.42 |
| 04 | 7.62 | 10.96 |
| 05 | 10.16 | 13.50 |
| 06 | 12.70 | 16.04 |
| 07 | 15.24 | 18.58 |
| 08 | 17.78 | 21.12 |
| 09 | 20.32 | 23.66 |
| 10 | 22.86 | 26.20 |
| 11 | 25.40 | 28.74 |
| 12 | 27.94 | 31.28 |
| 13 | 30.48 | 33.82 |
| 14 | 33.02 | 36.36 |
| 15 | 35.56 | 38.90 |
| 16 | 38.10 | 41.44 |
| 17 | 40.64 | 43.98 |
| 18 | 43.18 | 46.52 |
| 19 | 45.72 | 49.06 |
| 20 | 48.26 | 51.60 |
| 21 | 50.80 | 54.14 |
| 22 | 53.34 | 56.68 |
| 23 | 55.88 | 59.22 |
| 24 | 58.42 | 61.76 |
| 25 | 60.96 | 64.30 |
| 26 | 63.50 | 66.84 |
| 27 | 66.04 | 69.38 |
| 28 | 68.58 | 71.92 |
| 29 | 71.12 | 74.46 |
| 30 | 73.66 | 77.00 |
| 31 | 76.20 | 79.54 |
| 32 | 78.74 | 82.08 |
| 33 | 81.28 | 84.62 |
| 34 | 83.82 | 87.16 |
| 35 | 86.36 | 89.70 |
| 36 | 88.90 | 92.24 |
| 37 | 91.44 | 94.78 |
| 38 | 93.98 | 97.32 |
| 39 | 96.52 | 99.86 |
| 40 | 99.06 | 102.40 |
Ordering information：
Standard Plating
02 : Gold Flash
Selective Plating
01 : Tin
05 : Gold Flash/Tin
Standard Packaging : Tube
