规格：
Current Rating: 1.0 Ampere
Insulation Resistance: 1000 MΩ Min
Dielectric Withstanding: 300V AC
Contact Resistance: 20 mΩ Max
Operating Temperature: -40ºC to +105ºC
材料：
Contact Material: Phosphor Bronze
Insulation Material: High Temperature Thermoplastic, 94V-0 LCP

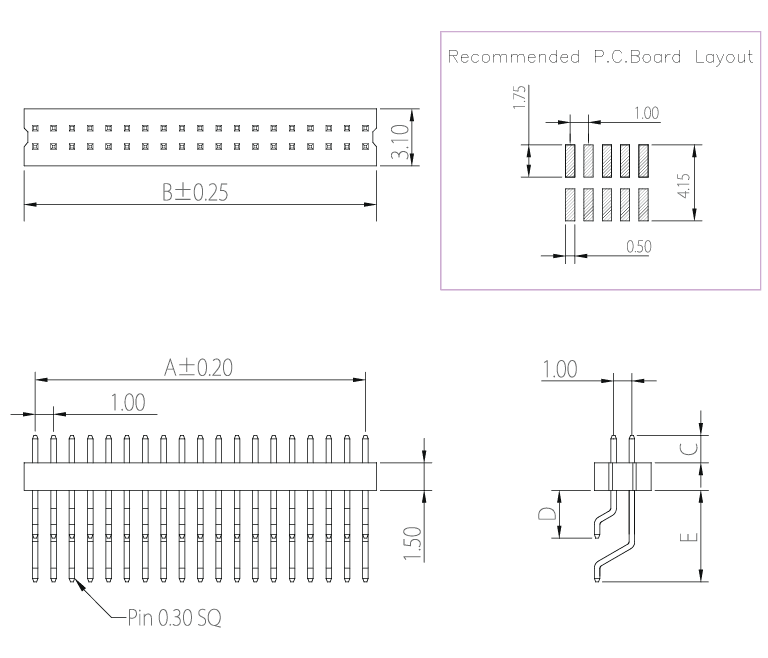

2D drawing：
No. of Pins per Row：
| No. of Pins/Row | Dimension Information | |
| A | B | |
| 02 | 1.00 | 2.20 |
| 03 | 2.00 | 3.20 |
| 04 | 3.00 | 4.20 |
| 05 | 4.00 | 5.20 |
| 06 | 5.00 | 6.20 |
| 07 | 6.00 | 7.20 |
| 08 | 7.00 | 8.20 |
| 09 | 8.00 | 9.20 |
| 10 | 9.00 | 10.20 |
| 11 | 10.00 | 11.20 |
| 12 | 11.00 | 12.20 |
| 13 | 12.00 | 13.20 |
| 14 | 13.00 | 14.20 |
| 15 | 14.00 | 15.20 |
Ordering information：
Standard Plating
02 : Gold Flash
Selective Plating
01 : Tin
Standard Packaging : Tube
