Speed ：10/100/1000 Base-TX | No. of Ports ：1 x 2 | Mount type ：Dip | Positions & Contacts ：14p8c | Plug orientation ：Tap down | LEDs ：Without | EMI Fingers ：Without | PoE ：Without | Relay ：Without | Surge ：Without | Long Body
规格：
Meets IEEE 802.3 specification
Comply with RoHS requirements.
材料：
Shield :
Housing :

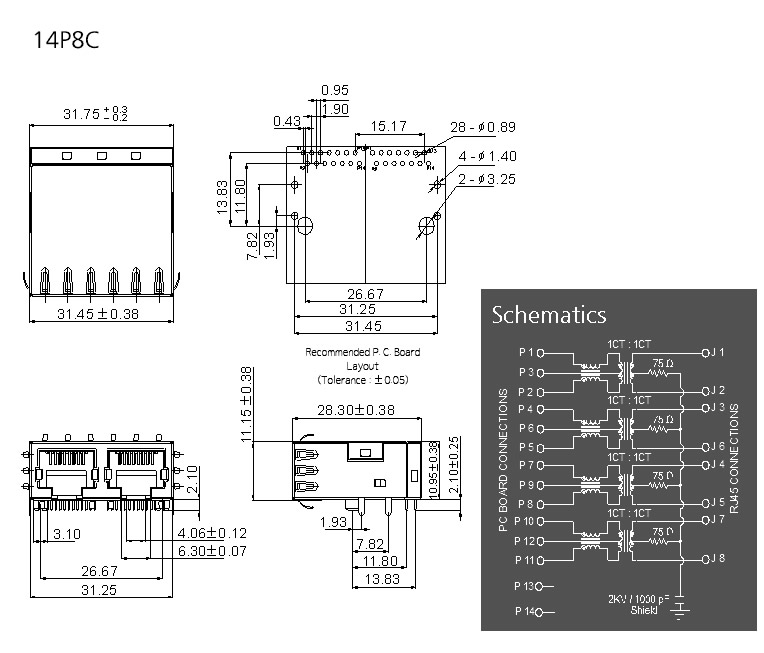

2D drawing：
| Turns Ratio ±5% | Insertion Loss (dB max) | Return Loss (dB min) | Cross Talk (dB min) | Hipot (Vrms) | |||
| 0.1 - 100 MHz | 1 - 30 MHz | 30 - 60 MHz | 60 - 80 MHz | 100 MHz | 1-100MHz | 1500 | |
| 1CT : 1CT | - 1 | - 18 | - 16 | - 12 | - 10 | - 30 | |
