Speed ：10/100/1000 Base-TX | No. of Ports ：1 | Mount type ：Dip | Positions & Contacts ：10p8c | Plug orientation ：Tab up | LEDs ：With | EMI Fingers ：With | PoE ：Without | Relay ：Without | Surge ：Without
规格：
Available with or without LEDs
Meets IEEE 802.3 specification
High performance for maximum EMI suppression
Comply with RoHS requirements.
材料：
Shield : Brass
Housing : High Temperature Thermoplastic, LCP (Black)

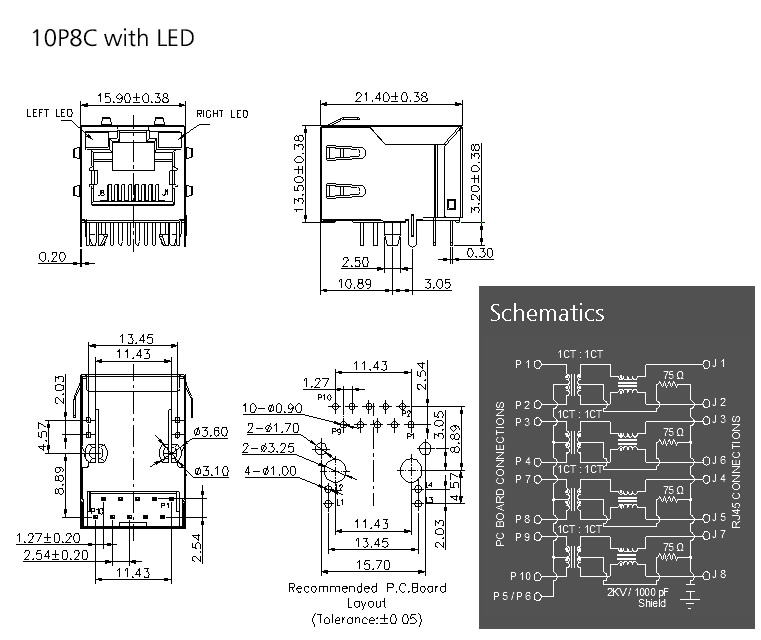

2D drawing：
Electrical Specifications @25℃ Operating Temperature 0 to 70℃ or Customize：
| Turns Ratio ±5% | Insertion Loss (dB max) | Return Loss (dB min) | Cross Talk (dB min) | Hipot (Vrms) | |||
| 0.1 - 100 MHz | 1 - 30 MHz | 30 - 60 MHz | 60 - 80 MHz | 100 MHz | 1-100MHz | 1500 | |
| 1CT : 1CT | - 1 | - 18 | - 16 | - 12 | - 10 | - 30 | |
