规格：
Current Rating: 3.0 Ampere
Insulation Resistance: 1000 MΩ Min
Dielectric Withstanding: 300V AC
Contact Resistance: 20 mΩ Max
Operating Temperature: -25ºC to +105ºC
规格：
Current Rating: 3.0 Ampere
Insulation Resistance: 1000 MΩ Min
Dielectric Withstanding: 300V AC
Contact Resistance: 20 mΩ Max
Operating Temperature: -25ºC to +105ºC
材料：
Contact Material: Brass
Shell Material: SPCC
Insulation Material: High Temperature Thermoplastic, 94V-0 PBT

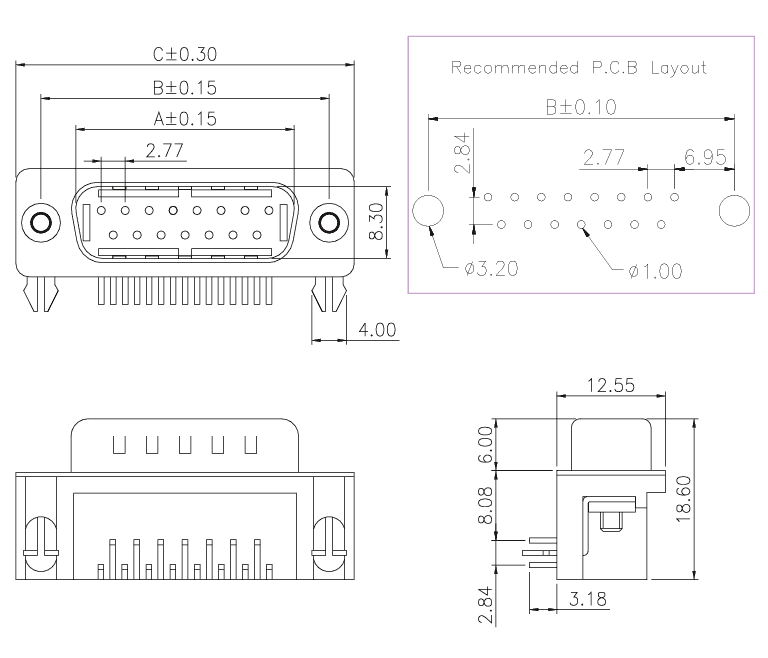

2D drawing：
No. of Pins per Row：
| Poles | Dimension Information | ||
| A | B | C | |
| 09 | 16.33 | 24.99 | 30.80 |
| 15 | 24.66 | 33.32 | 39.10 |
| 25 | 38.38 | 47.04 | 53.00 |
Ordering information：
Standard Plating
02 : Gold Flash
Selective Plating
01 : Tin
05 : Gold Flash/Tin
Standard Packaging : Tray
