规格：

Current Rating: 3.0 Ampere

Insulation Resistance: 1000 MΩ Min

Dielectric Withstanding: 500V AC

Contact Resistance: 20 mΩ Max

Operating Temperature: -20ºC to +85ºC

材料：

Contact Material: Brass

Shell Material: SPCC

Insulation Material: High Temperature Thermoplastic, 94V-0 PBT

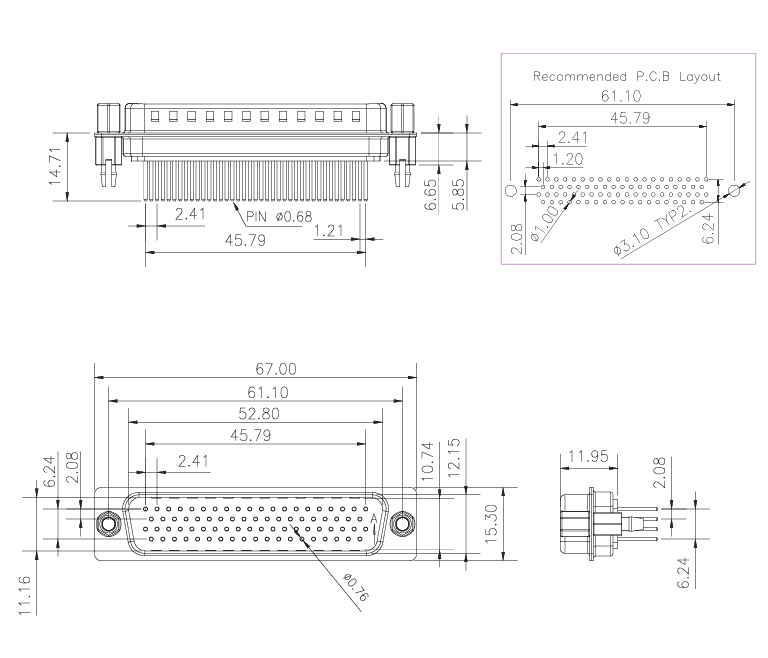

2D drawing：

Ordering information：

Standard Plating

02 : Gold Flash

Selective Plating

01 : Tin

Standard Packaging : Tray
