Pitch ：1.27 mm / 0.05" | Gender ：Female | Mount type ：Dip | Locating peg ：With | A type
规格：
Current Rating: 1.0 Ampere
Insulation Resistance: 1000 MΩ Min
Dielectric Withstanding: 300V AC
Contact Resistance: 20 mΩ Max
Operating Temperature: -40ºC to +105ºC
材料：
Contact Material: Phosphor Bronze
Insulation Material: High Temperature Thermoplastic, 94V-0 Nylon

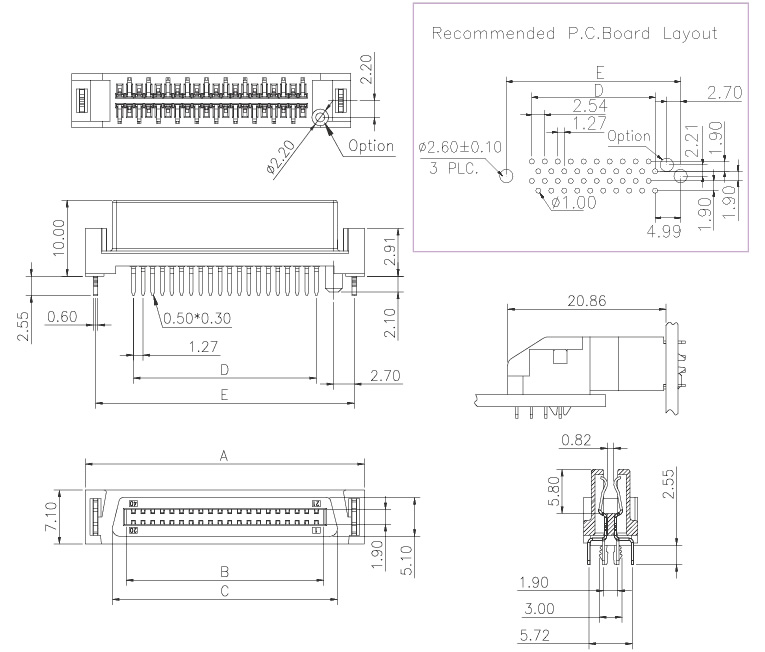

2D drawing：
No. of Pins per Row：
| Poles | Dimension Information | ||||
| A | B | C | D | E | |
| 2 x 20 pin | 35.33 | 32.47 | 25.77 | 24.13 | 31.53 |
| 2 x 34 pin | 53.11 | 50.25 | 43.55 | 41.91 | 49.31 |
Ordering information：
Standard Plating
02 : Gold Flash
Selective Plating
01 : Tin
05 : Gold Flash/Tin
Standard Packaging : Tube
