Pitch ：1.27 mm / 0.05" | Gender ：Female | Mount type ：Dip | Locating peg ：With | 1.27 x 2.54 mm (0.05" x 0.1")
规格：
Current Rating: 1.0 Ampere
Insulation Resistance: 1000 MΩ Min
Dielectric Withstanding: 300V AC
Contact Resistance: 20 mΩ Max
Operating Temperature: -40ºC to +105ºC
材料：
Contact Material: Phosphor Bronze
Insulation Material: High Temperature Thermoplastic, 94V-0 PBT

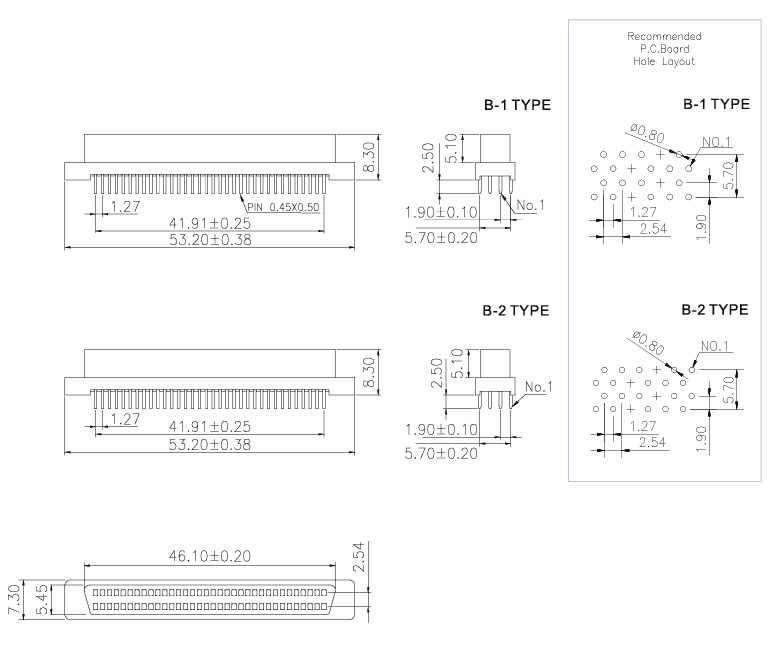

2D drawing：
Ordering information：
Standard Plating
02 : Gold Flash
Selective Plating
01 : Tin
05 : Gold Flash/Tin
Standard Packaging : Tube
