规格：
Current Rating: 1.0 Ampere
Insulation Resistance: 100 MΩ Min
Dielectric Withstanding: 250V AC
Contact Resistance: 20 mΩ Max
Operating Temperature: -25ºC to +85ºC
材料：
Contact Material: Brass
Insulation Material: High Temperature Thermoplastic, 94V-0 Nylon

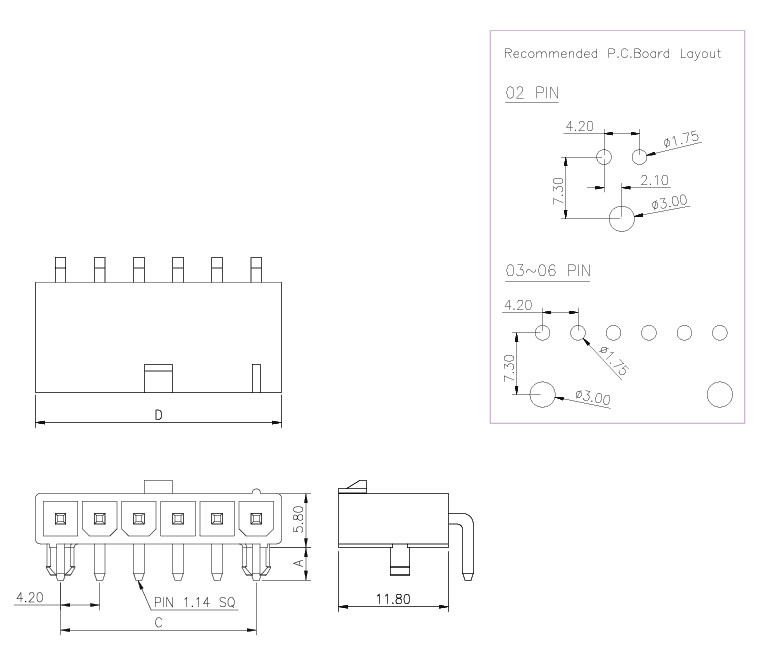

2D drawing：
No. of Pins per Row：
| No. of Pins/Row | Dimension Information | |
| C | D | |
| 02 | 4.20 | 9.60 |
| 03 | 8.40 | 13.80 |
| 04 | 12.60 | 18.00 |
| 05 | 16.80 | 22.20 |
| 06 | 21.00 | 26.40 |
Ordering information：
Standard Plating
01 : Tin
02 : Gold Flash
Standard Packaging : Tube
