规格：
Current Rating: 1.0 Ampere
Insulation Resistance: 100 MΩ Min
Dielectric Withstanding: 250V AC
Contact Resistance: 20 mΩ Max
Operating Temperature: -25ºC to +85ºC
材料：
Contact Material: Brass
Insulation Material: High Temperature Thermoplastic, 94V-0 Nylon

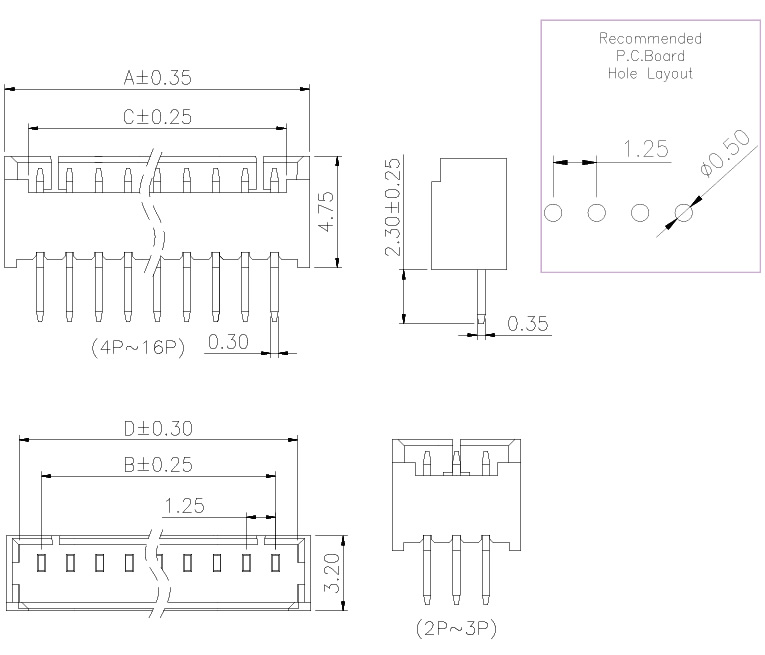

2D drawing：
No. of Pins per Row：
| No. of Pins/Row | Dimension Information | |||
| A | B | C | D | |
| 02 | 4.25 | 1.25 | 2.25 | 1.25 |
| 03 | 5.50 | 2.50 | 3.50 | 2.50 |
| 04 | 6.75 | 3.75 | 4.75 | 3.75 |
| 05 | 8.00 | 5.00 | 6.00 | 5.00 |
| 06 | 9.25 | 6.25 | 7.25 | 6.25 |
| 07 | 10.50 | 7.50 | 8.50 | 7.50 |
| 08 | 11.75 | 8.75 | 9.75 | 8.75 |
| 09 | 13.00 | 10.00 | 11.00 | 10.00 |
| 10 | 14.25 | 11.25 | 12.25 | 11.25 |
| 11 | 15.50 | 12.50 | 13.50 | 12.50 |
| 12 | 16.75 | 13.75 | 14.75 | 13.75 |
| 13 | 18.00 | 15.00 | 16.00 | 15.00 |
| 14 | 19.25 | 16.25 | 17.25 | 16.25 |
| 15 | 20.50 | 17.50 | 18.50 | 17.50 |
| 16 | 21.75 | 18.75 | 19.75 | 18.75 |
Ordering information：
Standard Plating
01 : Tin
Selective Plating
05 : Gold Flash / Tin
22 : Matte Tin
Standard Packaging : PE bag
