规格：
Current Rating: 0.5 Ampere
Insulation Resistance: 500 MΩ Min
Dielectric Withstanding: 150V AC
Contact Resistance: 50 mΩ Max
Operating Temperature: -40ºC to +105ºC
材料：
Contact Material: Phosphor Bronze
Orient Slice: Brass
Insulation Material: High Temperature Thermoplastic, 94V-0 Nylon

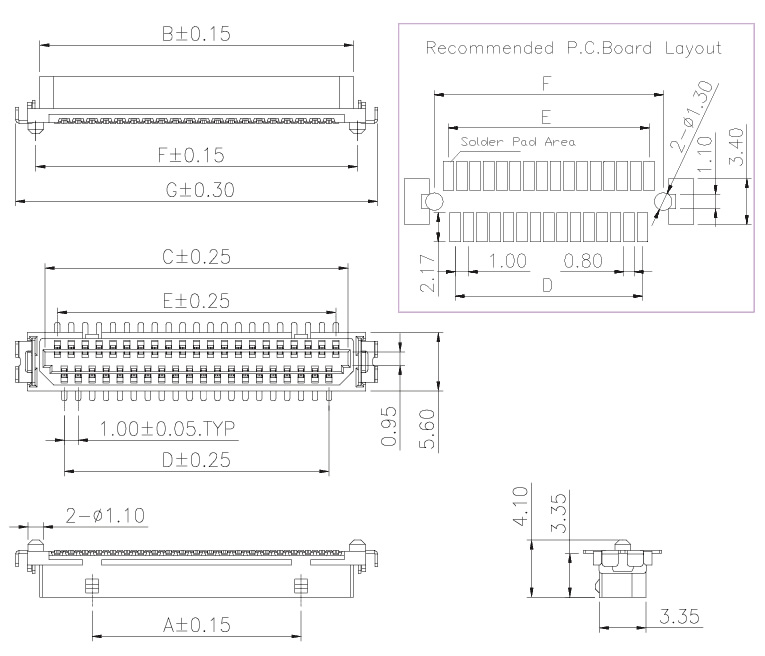

2D drawing：
No. of Pins per Row：
| No. of Pins/Row | Dimension Information | ||||||
| A | B | C | D | E | F | G | |
| 09 | 6.50 | 5.75 | 3.00 | 4.00 | 2.80 | 5.80 | |
| 11 | 7.50 | 6.75 | 4.00 | 5.00 | 3.80 | 6.80 | |
| 13 | 8.50 | 7.75 | 5.00 | 6.00 | 4.80 | 7.80 | |
| 15 | 9.50 | 8.75 | 6.00 | 7.00 | 5.80 | 8.80 | |
| 17 | 3.00 | 10.50 | 9.75 | 7.00 | 8.00 | 6.80 | 9.80 |
| 19 | 4.00 | 11.50 | 10.75 | 8.00 | 9.00 | 7.80 | 10.80 |
| 21 | 5.00 | 12.50 | 11.75 | 9.00 | 10.00 | 8.80 | 11.80 |
| 23 | 6.00 | 13.50 | 12.75 | 10.00 | 11.00 | 9.80 | 12.80 |
| 25 | 7.00 | 14.50 | 13.75 | 11.00 | 12.00 | 10.80 | 13.80 |
| 31 | 10.00 | 17.50 | 16.75 | 14.00 | 15.00 | 13.80 | 16.80 |
| 41 | 15.00 | 22.50 | 21.75 | 19.00 | 20.00 | 18.80 | 21.80 |
| 51 | 20.00 | 27.50 | 26.75 | 24.00 | 25.00 | 23.80 | 26.80 |
Ordering information：
Standard Plating
01 : Tin
Standard Packaging : Film Tape Reel
