规格：
Current Rating: 3.0 Ampere
Insulation Resistance: 1000 MΩ Min
Dielectric Withstanding: 600V AC
Contact Resistance: 20 mΩ Max
Operating Temperature: -40ºC to +105ºC
材料：
Contact Material: Brass
Insulation Material: High Temperature Thermoplastic, 94V-0 Nylon

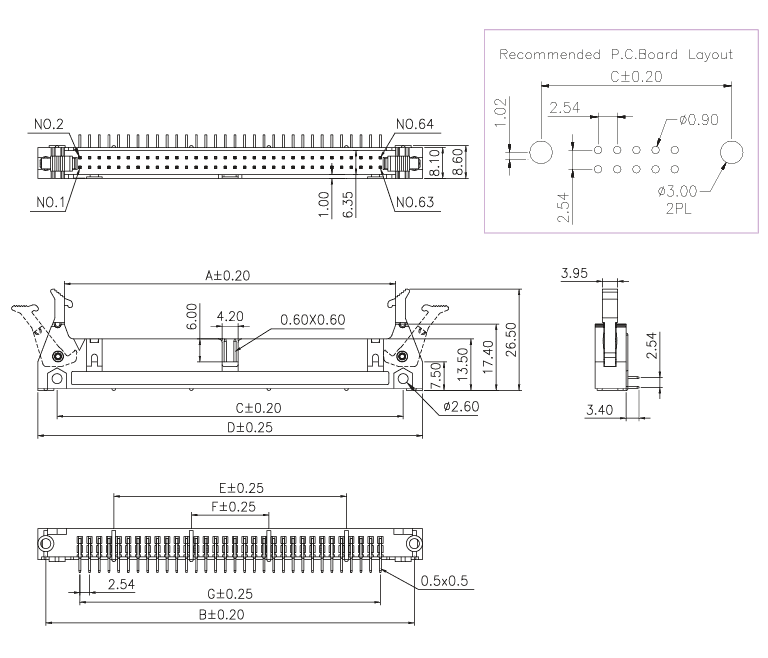

2D drawing：
No. of Pins per Row：
| Poles | Dimension Information | ||||||
| A | B | C | D | E | F | G | |
| 2 x 13 pin | 30.54 | 48.34 | 42.44 | 52.54 | 22.86 | 30.48 | |
| 2 x 17 pin | 48.70 | 58.50 | 52.60 | 62.70 | 22.86 | 40.64 | |
| 2 x 20 pin | 56.32 | 66.12 | 60.22 | 70.32 | 20.32 | 48.26 | |
| 2 x 25 pin | 69.02 | 78.82 | 72.92 | 83.02 | 22.86 | 60.96 | |
| 2 x 32 pin | 86.80 | 96.60 | 90.70 | 100.08 | 60.96 | 20.32 | 78.74 |
Ordering information：
Standard Plating
02 : Gold Flash
Selective Plating
01 : Tin
05 : Gold Flash/Tin
Standard Packaging : Box
