规格：
Current Rating: 3.0 Ampere
Insulation Resistance: 1000 MΩ Min
Dielectric Withstanding: 600V AC
Contact Resistance: 20 mΩ Max
Operating Temperature: -40ºC to +105ºC
材料：
Contact Material: Brass
Insulation Material: High Temperature Thermoplastic, 94V-0 PBT

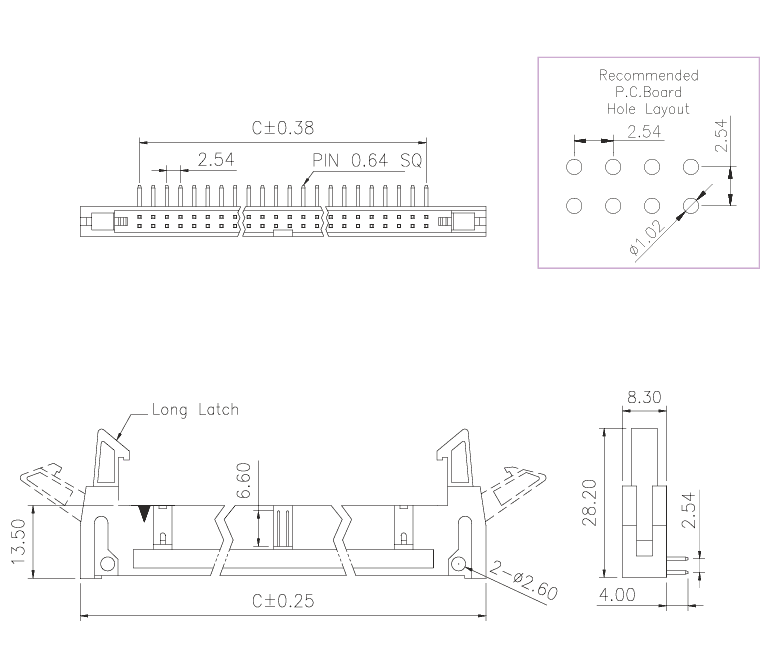

2D drawing：
No. of Pins per Row：
| No. of Pins/Row | Dimension Information | |
| C | D | |
| 05 | 10.16 | 32.00 |
| 06 | 12.70 | 34.54 |
| 07 | 15.24 | 37.08 |
| 08 | 17.78 | 38.62 |
| 10 | 22.86 | 44.70 |
| 12 | 27.94 | 49.78 |
| 13 | 30.48 | 52.32 |
| 15 | 35.56 | 57.40 |
| 17 | 40.64 | 62.48 |
| 20 | 48.26 | 70.10 |
| 25 | 60.96 | 82.80 |
| 30 | 73.66 | 95.50 |
| 32 | 78.74 | 100.58 |
Ordering information：
Standard Plating
02 : Gold Flash
Selective Plating
01 : Tin
05 : Gold Flash/Tin
Standard Packaging : Box
