规格：
Current Rating: 2.0 Ampere
Insulation Resistance: 1000 MΩ Min
Dielectric Withstanding: 500V AC
Contact Resistance: 20 mΩ Max
Operating Temperature: -40ºC to +105ºC
材料：
Contact Material: Brass
Insulation Material: High Temperature Thermoplastic, 94V-0 Nylon

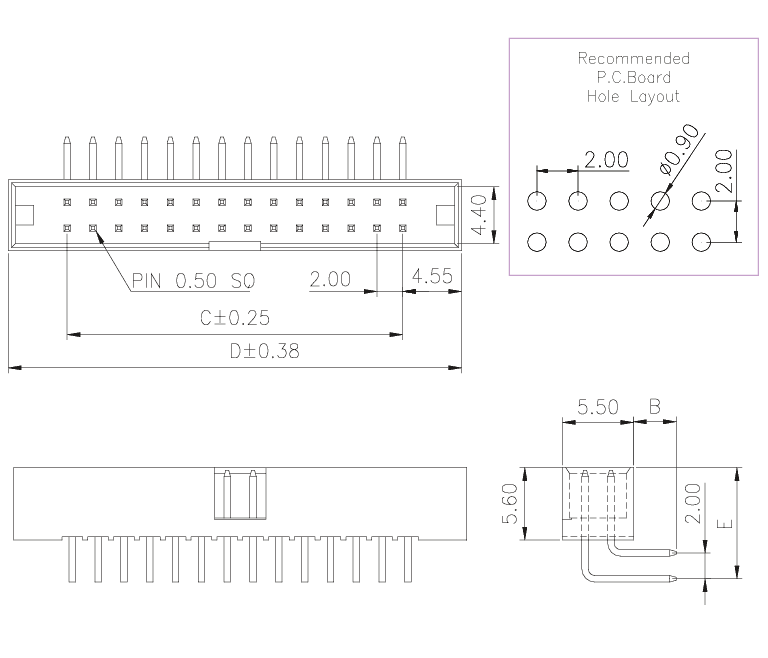

2D drawing：
No. of Pins per Row：
| No. of Pins/Row | Dimension Information | |
| C | D | |
| 05 | 8.00 | 17.10 |
| 06 | 10.00 | 19.10 |
| 07 | 12.00 | 21.10 |
| 08 | 14.00 | 23.10 |
| 09 | 16.00 | 25.10 |
| 10 | 18.00 | 27.10 |
| 11 | 20.00 | 29.10 |
| 12 | 22.00 | 31.10 |
| 13 | 24.00 | 33.10 |
| 14 | 26.00 | 35.10 |
| 15 | 28.00 | 37.10 |
| 16 | 30.00 | 39.10 |
| 17 | 32.00 | 41.10 |
| 18 | 34.00 | 43.10 |
| 19 | 36.00 | 45.10 |
| 20 | 38.00 | 47.10 |
| 21 | 40.00 | 49.10 |
| 22 | 42.00 | 51.10 |
| 23 | 44.00 | 53.10 |
| 24 | 46.00 | 55.10 |
| 25 | 48.00 | 57.10 |
Ordering information：
Standard Plating
02 : Gold Flash
Selective Plating
01 : Tin
05 : Gold Flash/Tin
Standard Packaging : Tube
