规格：
Current Rating: 2.0 Ampere
Insulation Resistance: 1000 MΩ Min
Dielectric Withstanding: 500V AC
Contact Resistance: 20 mΩ Max
Operating Temperature: -40ºC to +105ºC
材料：
Contact Material: Phosphor Bronze
Insulation Material: High Temperature Thermoplastic, 94V-0 Nylon

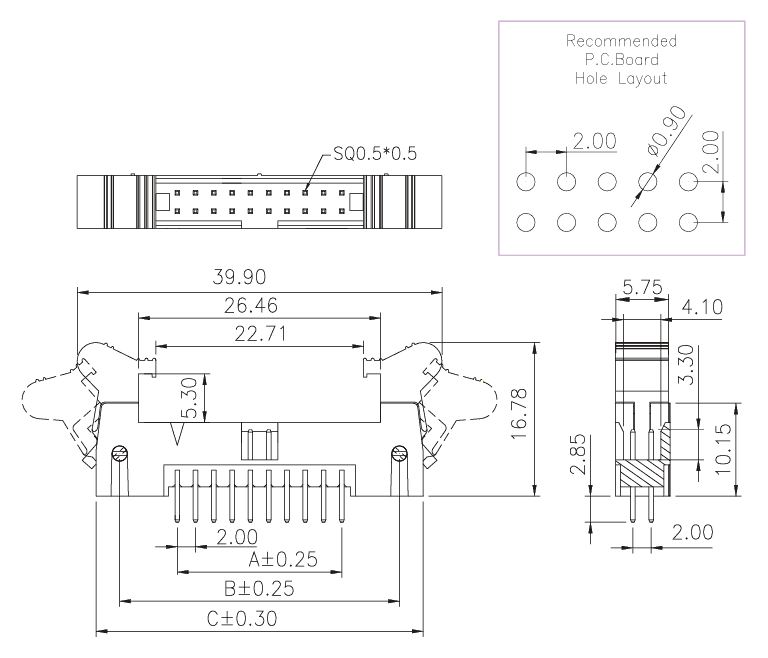

2D drawing：
No. of Pins per Row：
| No. of Pins/Row | Dimension Information | ||
| A | B | C | |
| 10 | 18.00 | 30.60 | 35.75 |
| 15 | 28.00 | 40.60 | 45.75 |
| 16 | 30.00 | 42.60 | 47.75 |
| 17 | 32.00 | 44.60 | 49.75 |
| 18 | 34.00 | 46.60 | 51.75 |
| 19 | 36.00 | 48.60 | 53.75 |
| 20 | 38.00 | 50.60 | 55.75 |
Ordering information：
Standard Plating
02 : Gold Flash
Selective Plating
01 : Tin
05 : Gold Flash/Tin
Standard Packaging : Box
