规格：
Current Rating: 2.0 Ampere
Insulation Resistance: 1000 MΩ Min
Dielectric Withstanding: 500V AC
Contact Resistance: 20 mΩ Max
Operating Temperature: -40ºC to +105ºC
材料：
Contact Material: Brass
Insulation Material: High Temperature Thermoplastic, 94V-0 LCP

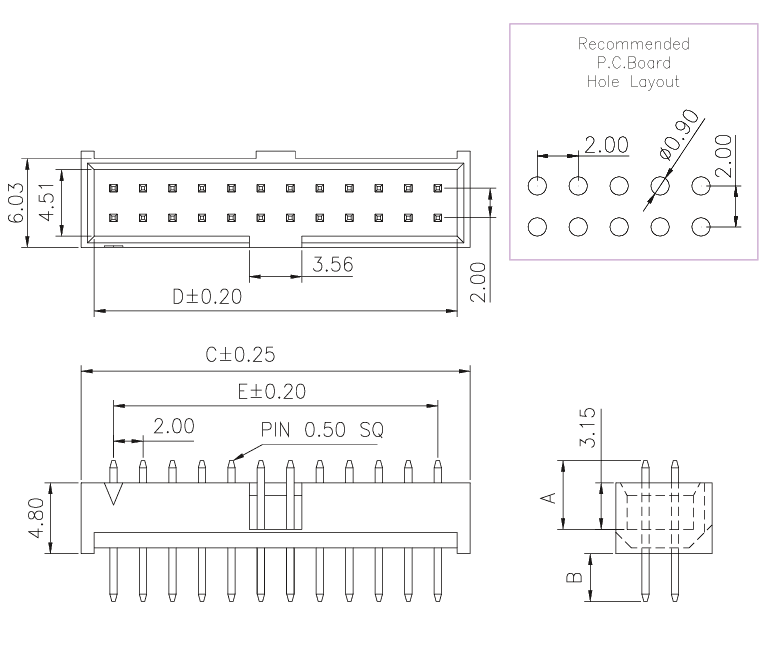

2D drawing：
No. of Pins per Row：
| No. of Pins/Row | Dimension Information | ||
| C | D | E | |
| 04 | 10.38 | 8.62 | 6.00 |
| 05 | 12.38 | 10.62 | 8.00 |
| 06 | 14.38 | 12.62 | 10.00 |
| 07 | 16.38 | 14.62 | 12.00 |
| 08 | 18.38 | 16.62 | 14.00 |
| 09 | 20.38 | 18.62 | 16.00 |
| 10 | 22.38 | 20.62 | 18.00 |
| 11 | 24.38 | 22.62 | 20.00 |
| 12 | 26.38 | 24.62 | 22.00 |
| 13 | 28.38 | 26.62 | 24.00 |
| 14 | 30.38 | 28.62 | 26.00 |
| 15 | 32.38 | 30.62 | 28.00 |
| 16 | 34.38 | 32.62 | 30.00 |
| 17 | 36.38 | 34.62 | 32.00 |
| 18 | 38.38 | 36.62 | 34.00 |
| 19 | 40.38 | 38.62 | 36.00 |
| 20 | 42.38 | 40.62 | 38.00 |
| 21 | 44.38 | 42.62 | 40.00 |
| 22 | 46.38 | 44.62 | 42.00 |
| 23 | 48.38 | 46.62 | 44.00 |
| 24 | 50.38 | 48.62 | 46.00 |
| 25 | 52.38 | 50.62 | 48.00 |
Ordering information：
Standard Plating
02 : Gold Flash
Selective Plating
01 : Tin
05 : Gold Flash/Tin
Standard Packaging : Tube
