Pitch ：1.27 mm / 0.05" | Mount type ：S.M.T. R/A | Locating peg ：With | Polarization ：With
规格：
Current Rating: 1.0 Ampere
Insulation Resistance: 1000 MΩ Min
Dielectric Withstanding: 300V AC
Contact Resistance: 20 mΩ Max
Operating Temperature: -40ºC to +105ºC
材料：
Contact Material: Phosphor Bronze
Insulation Material: High Temperature Thermoplastic, 94V-0 LCP

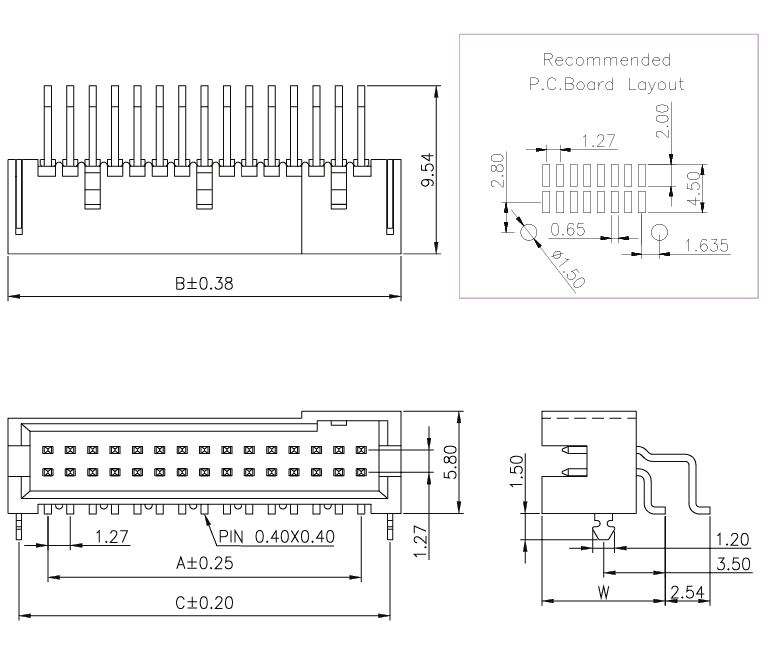

2D drawing：
No. of Pins per Row：
| No. of Pins/Row | Dimension Information | ||
| A | B | C | |
| 05 | 5.08 | 9.60 | 8.35 |
| 08 | 8.89 | 13.41 | 12.16 |
| 10 | 11.43 | 15.95 | 14.70 |
| 15 | 17.78 | 22.30 | 21.05 |
| 20 | 24.13 | 28.65 | 27.40 |
| 22 | 26.67 | 31.19 | 29.94 |
| 24 | 29.21 | 33.68 | 32.48 |
| 30 | 36.83 | 41.35 | 40.10 |
Ordering information：
Standard Plating
01 : Tin
02 : Gold Flash
Selective Plating
05 : Gold Flash/Tin
Standard Packaging : Tube
