Pitch ：1.00 mm / 0.039" | Gender ：Male | Mount type ：S.M.T. | 1.00 x 1.45 mm (0.039" x 0.057")
规格：
Current Rating: 1.0 Ampere
Insulation Resistance: 1000 MΩ Min
Dielectric Withstanding: 300V AC
Contact Resistance: 20 mΩ Max
Operating Temperature: -40ºC to +105ºC
材料：
Contact Material: Phosphor Bronze
Insulation Material: High Temperature Thermoplastic, 94V-0 Nylon

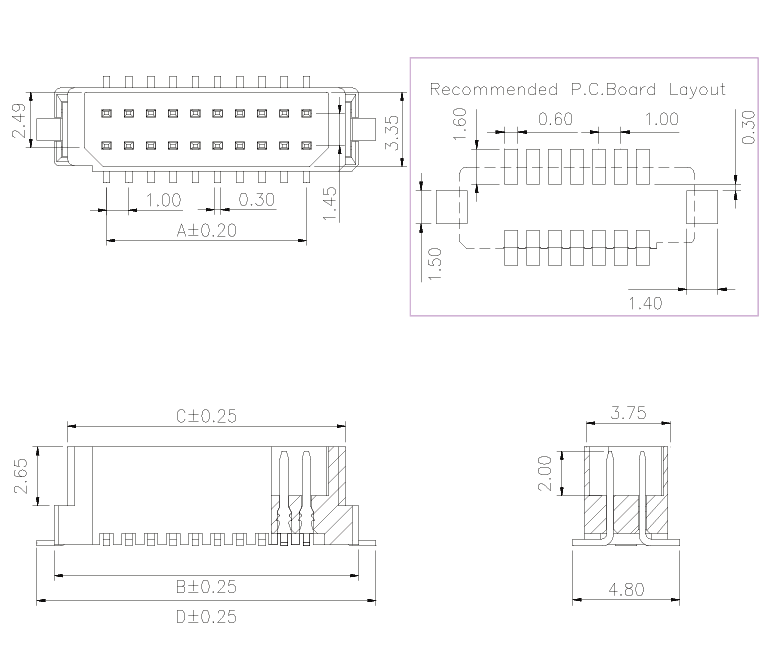

2D drawing：
Ordering information：
Standard Plating
02 : Gold Flash
Selective Plating
01 : Tin
Standard Packaging : Tube
