规格：

Current Rating: 0.5 Ampere

Insulation Resistance: 500 MΩ Min

Dielectric Withstanding: 200V AC

Contact Resistance: 20 mΩ Max

Operating Temperature: -40ºC to +105ºC

材料：

Contact Material: Phosphor Bronze

Insulation Material: High Temperature Thermoplastic, 94V-0 LCP

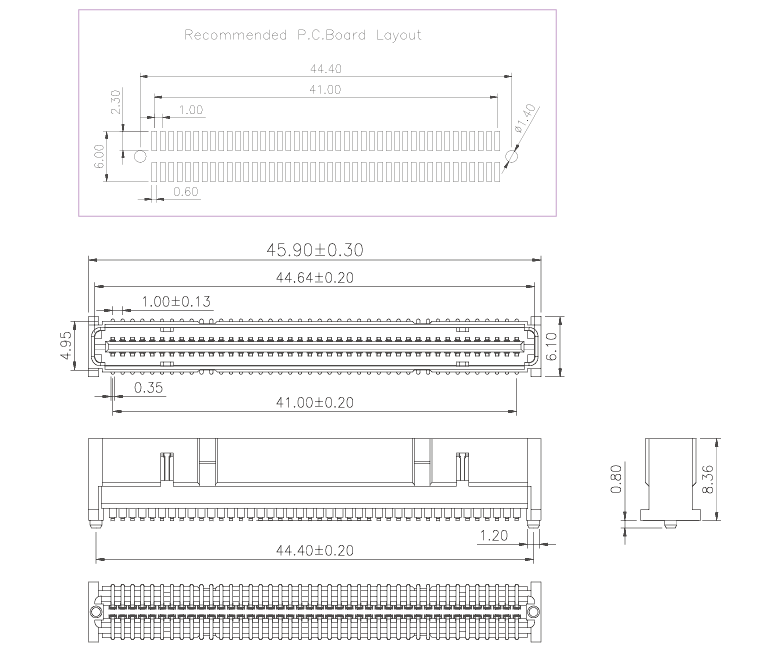

2D drawing：

Ordering information：

Standard Plating

38 : Gold 10u" / Matte Tin 100u'

Selective Plating

01 : Tin

02 : Gold Flash

Standard Packaging : Cap + Tape Reel
