Pitch ：1.00 mm / 0.039" | Gender ：Male | Mount type ：S.M.T. R/A | 1.00 x 1.45 mm (0.039" x 0.057")
规格：
Current Rating: 1.0 Ampere
Insulation Resistance: 1000 MΩ Min
Dielectric Withstanding: 300V AC
Contact Resistance: 20 mΩ Max
Operating Temperature: -40ºC to +105ºC
材料：
Contact Material: Phosphor Bronze
Insulation Material: High Temperature Thermoplastic, 94V-0 Nylon

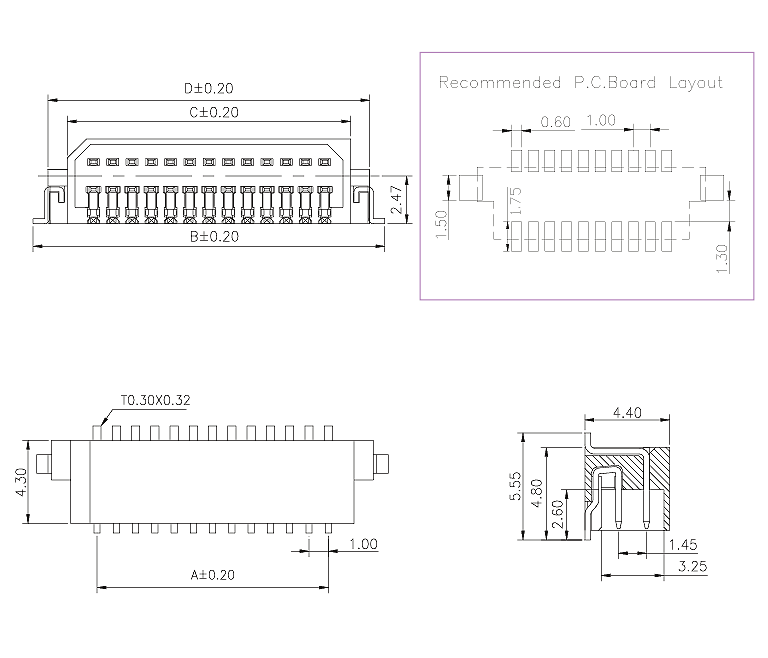

2D drawing：
No. of Pins per Row：
| No. of Pins/Row | Dimension Information | |||
| A | B | C | D | |
| 05 | 4.00 | 10.25 | 6.70 | 8.70 |
| 06 | 5.00 | 11.25 | 7.70 | 9.70 |
| 07 | 6.00 | 12.25 | 8.70 | 10.70 |
| 08 | 7.00 | 13.25 | 9.70 | 11.70 |
| 09 | 8.00 | 14.25 | 10.70 | 12.70 |
| 10 | 9.00 | 15.25 | 11.70 | 13.70 |
| 11 | 10.00 | 16.25 | 12.70 | 14.70 |
| 12 | 11.00 | 17.25 | 13.70 | 15.70 |
| 13 | 12.00 | 18.25 | 14.70 | 16.70 |
| 14 | 13.00 | 19.25 | 15.70 | 17.70 |
| 15 | 14.00 | 20.25 | 16.70 | 18.70 |
Ordering information：
Standard Plating
02 : Gold Flash
Selective Plating
01 : Tin
Standard Packaging : Tube
