Pitch ：2.00 mm / 0.079" | Number of row ：Dual rows | Mount type ：S.M.T. | Side entry
规格：
Current Rating: 2.0 Ampere
Insulation Resistance: 1000 MΩ Min
Dielectric Withstanding: 500V AC
Contact Resistance: 20 mΩ Max
Operating Temperature: -40ºC to +105ºC
材料：
Contact Material: Phosphor Bronze
Insulation Material: High Temperature Thermoplastic, 94V-0 Nylon

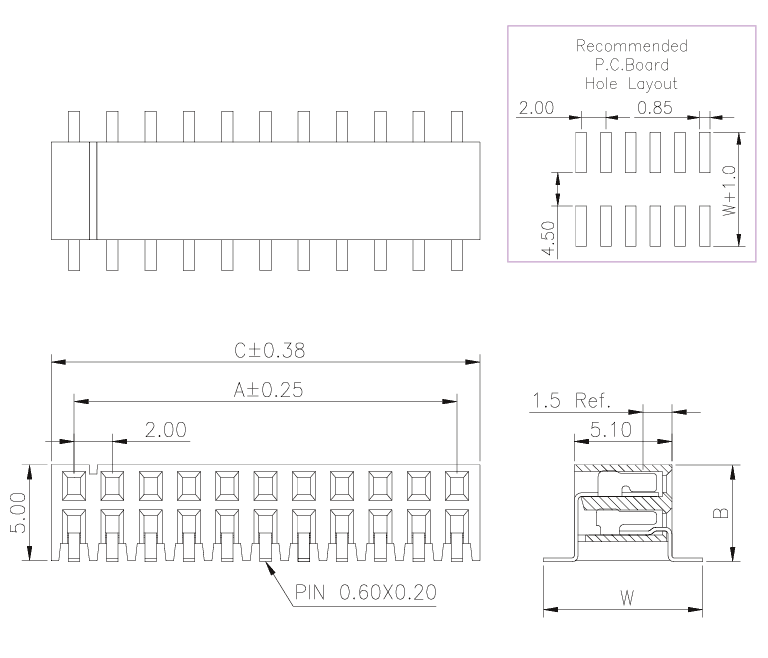

2D drawing：
No. of Pins per Row：
| No. of Pins/Row | Dimension Information | |
| A | C | |
| 02 | 2.00 | 4.40 |
| 03 | 4.00 | 6.40 |
| 04 | 6.00 | 8.40 |
| 05 | 8.00 | 10.40 |
| 06 | 10.00 | 12.40 |
| 07 | 12.00 | 14.40 |
| 08 | 14.00 | 16.40 |
| 09 | 16.00 | 18.40 |
| 10 | 18.00 | 20.40 |
| 11 | 20.00 | 22.40 |
| 12 | 22.00 | 24.40 |
| 13 | 24.00 | 26.40 |
| 14 | 26.00 | 28.40 |
| 15 | 28.00 | 30.40 |
| 16 | 30.00 | 32.40 |
| 17 | 32.00 | 34.40 |
| 18 | 34.00 | 36.40 |
| 19 | 36.00 | 38.40 |
| 20 | 38.00 | 40.40 |
| 21 | 40.00 | 42.40 |
| 22 | 42.00 | 44.40 |
| 23 | 44.00 | 46.40 |
| 24 | 46.00 | 48.40 |
| 25 | 48.00 | 50.40 |
Ordering information：
Standard Plating
02 : Gold Flash
Selective Plating
01 : Tin
05 : Gold Flash/Tin
Standard Packaging : Tube
